How to Choose and Configure Your Sprinter's Safari Roof Rack

Unlock your Sprinter's full capacity with a modular roof rack system. It's designed to seamlessly adapt to your gear, adventures, and unique lifestyle

Step1: Selecting Your Roof Rack based on your Sprinter Model

Selecting the appropriate roof rack for your Sprinter van model requires careful consideration of key factors. Refer to the image to choose the correct type.

Key Features of Our Sprinter Roof Racks:

  • Compatible with both Standard (Short) Roof (H1) and High Roof (H2) Sprinter models.
  • High Roof is Available in both Medium Wheelbase (L1) and Long Wheelbase (L2) versions.
  • Short Roof is only available in Medium Wheel Base (L1).

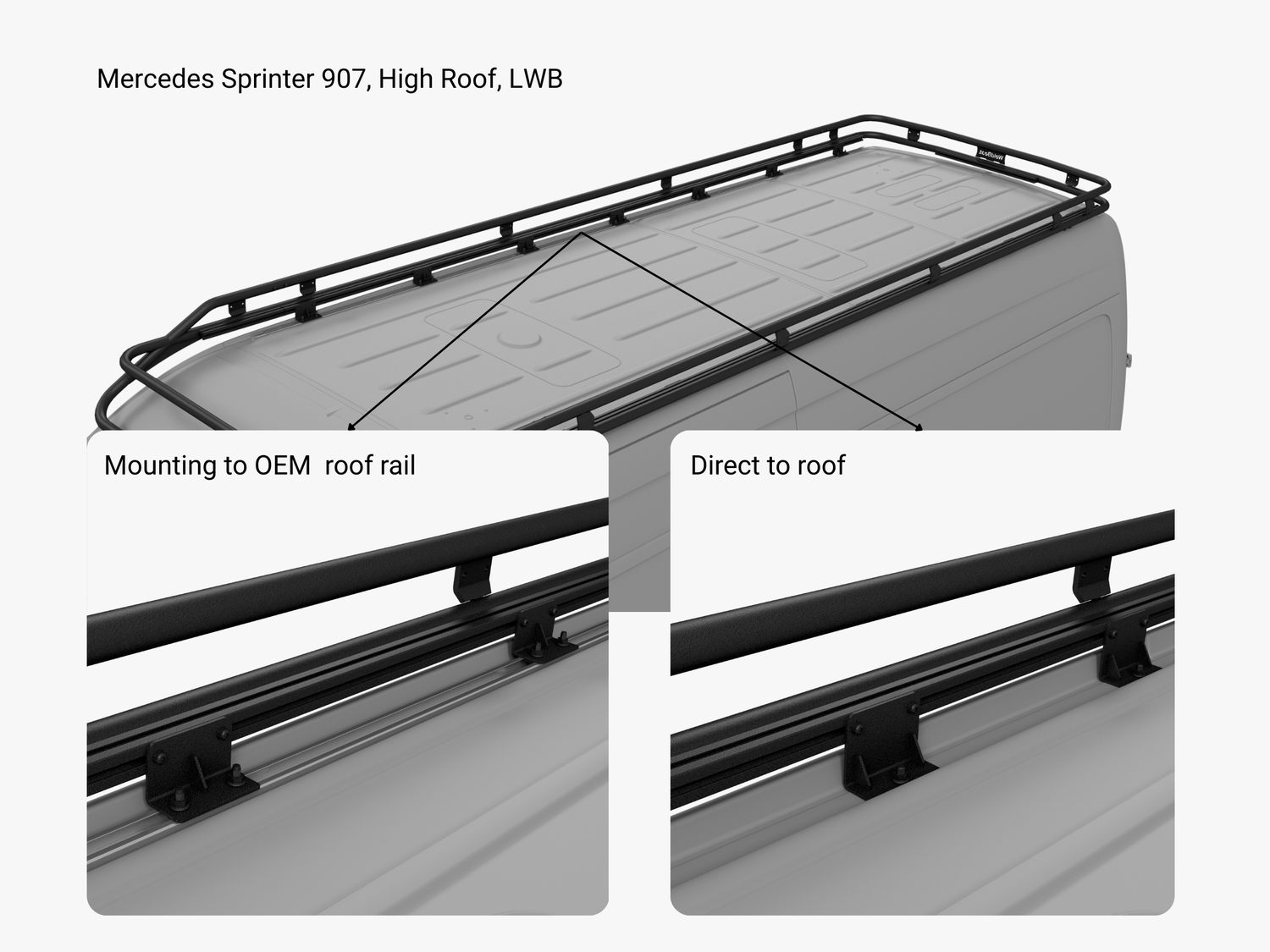

Step 2: Select Safari Roof Racks Mounting Option

Mounting to OEM Mercedes Roof Rails (Recommended) With this option Roof Rack can be mounted easily without needing interior access. Moreover, if you considering our Side ladders or poles system having oem roof rails enables easier bolting down the road.

Direct to Roof Brackets: Direct installation on the Roof remains feasible, utilising existing roof holes for brackets. It is advisable to complete this before any construction or fitout work, as internal access is necessary to secure the brackets. If internal access is not available, nut sert can still be used, with proper sealing to prevent leaks.

Step 3: Configuring Your Floor Decking

Your Sprinter's roof rack space is entirely customisable. Use this guide to configure your ideal setup.

Platform feature two t-slot rails measurement (A) you have the flexibility to add floor decking exactly as you see fit by utalising those rails, you can see two variable dimensions:



Model A (H1L1) A (H2L1) A (H2L2) B(width)
Sprinter High Roof 3130 mm 4165 mm 1370 mm
Sprinter Short Roof 3543 mm 1548 mm

Understanding the Floor Decking and Its Possibilities

Main floor decking palates provide a spacious and stable platform for walking, sitting, or securely mounting your essential gear. Combined with our conenctor decking pieces designed for roof vents, you can easily create gaps in the decking wherever needed.

Creating Gaps in Your Floor Decking for Roof Vents To create the required gaps, there are three available sizes:

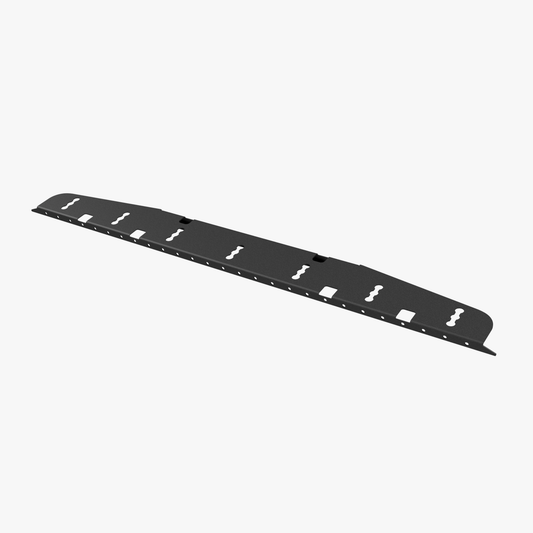

  • End Decking Plate

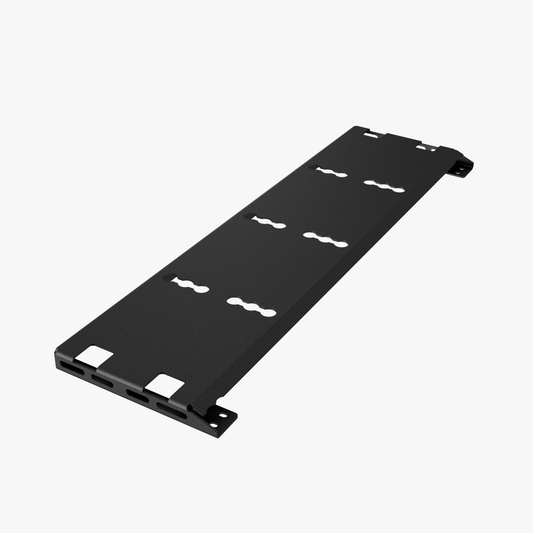

  • Edge Side Connector Decking Plate

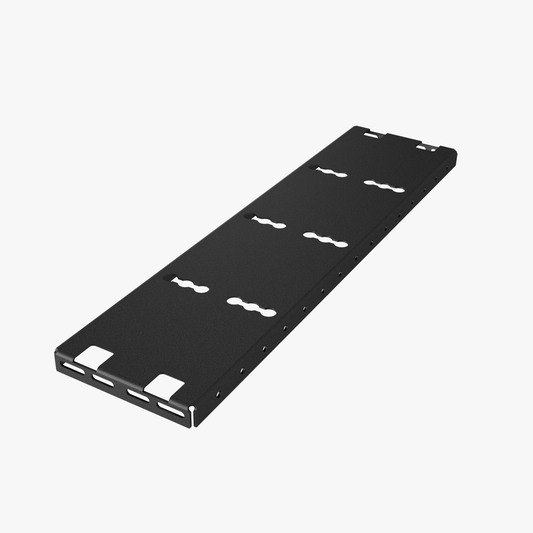

  • Side Connector Decking Plare

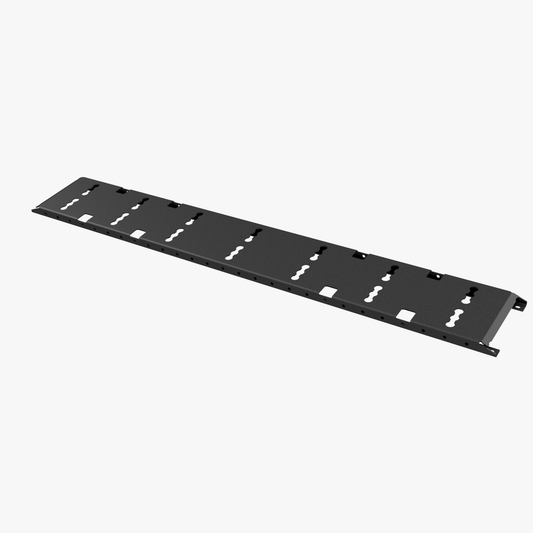

  • Main Decking Plate
  • Solar Brackets

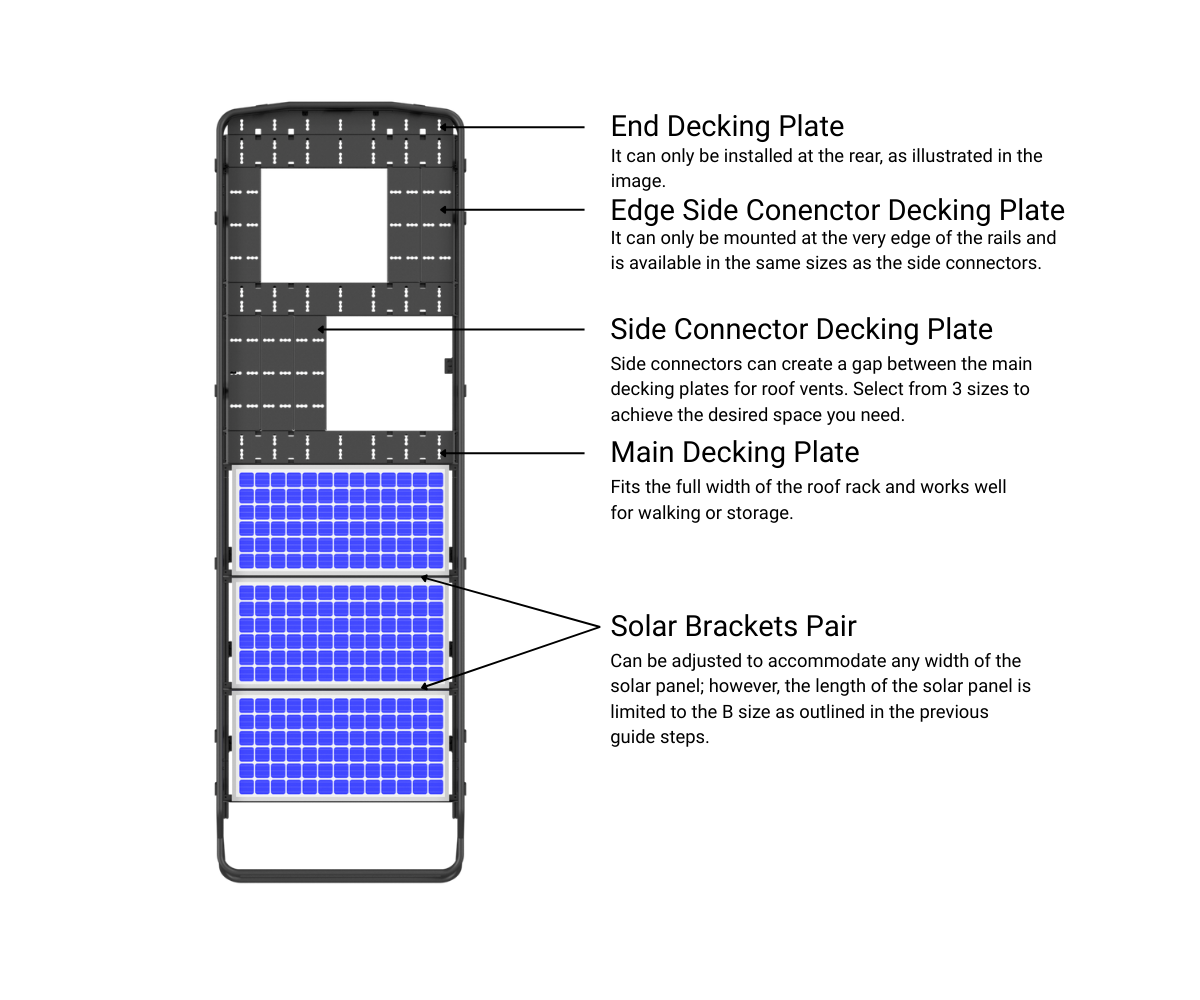

The image shows an example configuration.

Shop Roof Decking

ADD ACCESSORIES

Adding Awning or Lightbar To Your Roof Rack

Our Safari Roof Rack is engineered for seamless compatibility with Fiama and Thule awning systems.

For long wheelbase vehicles, we recommend pairing with the Fiamma F45 S 450. Medium wheelbase models work best with the Fiamma F45 S 350 Awning.


To install the Stedi Light Bar, secure it using Stedi Clamps designed for 40mm diameter tubing.

Shop Safari Roof Racks ->

cargo roof Rack Platform

FAQ

What is the recommended solar panel for use with the platform?

There are many great solar options available, and the best choice often depends on how you plan to mount it. Orientation plays a big role, so we recommend reaching out to us to confirm compatibility with your setup.

We have experience installing the Hardkorr 170W Fixed Solar Panel, which has proven to fit East to West orientation quite nicely.

Do I need Mercedes Sprinter roof rails to install the platform?

Yes, the platform is designed to mount directly onto the factory-installed Mercedes Sprinter roof rails.
If your van doesn't have roof rails, a direct-to-roof mounting option may be available—please contact us to discuss your setup.

Is there a room to install a Weldbeat side ladder?

Absolutely. Our side ladder is versatile and can be installed either before or after the platform. The top of the ladder mounts using the roof rail, ensuring seamless integration.

Do you provide brackets to fit a solar panel?

Yes, we offer solar panel brackets that are orientation-dependent. Please contact us to ensure you receive the correct brackets for your specific setup.

Is it possible to mount an awning to the platform?

Yes, our platform supports awning installation such us Fiama or Thule and offers a wide range of mounting options.

What light bars are recommended for use with the platform?

We have experience installing the following:
